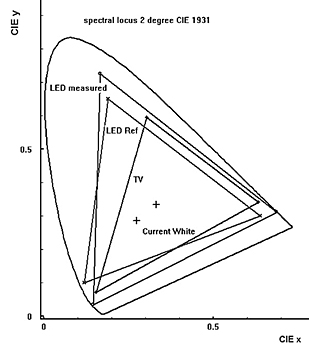

graphs above show the chromaticity diagram and the loci of primaries used beside the NTSC standard tv primaries

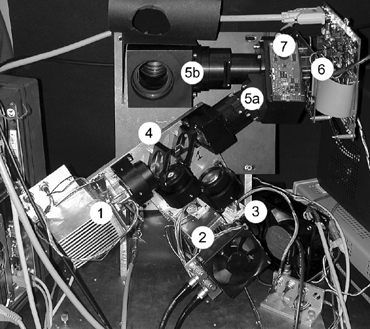

image right shows the main optic and hardware componenents for the system (1), (2) and (3) red, green and blue LED units (4) beam splitter (5a) DMD unit illuminated by composed led beams (5b) exit for image (6) DMD TI controller (7) RGB sensor unit
|
Video Conversion
the video standard primaries are mixed by
the LEDs, a fast rgb sensor measures the colours of the led primaries
and the shift of colour due to temperature changes
|
|
|
